Galeon 485 HTS

Galeon 485 HTS

The 485 is the embodiment of a modern sport cruiser with its impressive exterior, sport-like handling and the luxurious interior available in several variants. Step on board to discover what makes this model so special.

Download Brochure

Contact

Email: freedom@boatingfreedom.com

Vancouver: 604-609-0985

Vancouver Island: 250-940-9060

中文或粤语 Mandarin/Cantonese: 604-235-1000

Aftercare - Boathouse Facility

Find out more

Enquire Now

  • This field is for validation purposes and should be left unchanged.

Specification

About

The 485 HTS joined the amazing third-generation Galeon model lineup with its brilliant, awe-inspiring design. This sports-oriented open deck model focuses on providing high manoeuvrability and a thrilling ride while still maintaining an exceptional level of comfort. The layout of the 485 HTS was conceived to offer a convenient and spacious living arrangement.

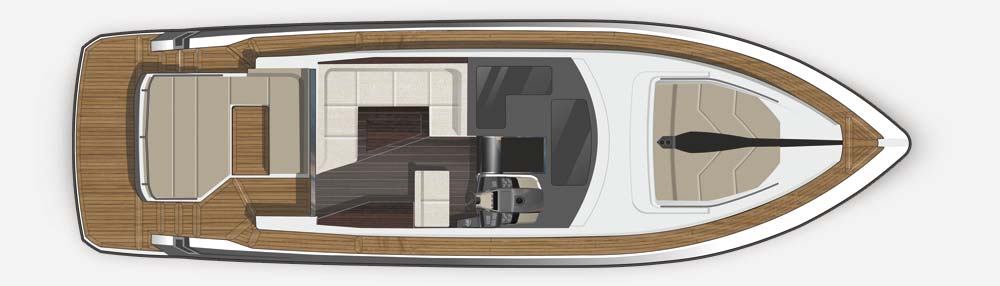

The main deck features a U-shaped sofa, a wet bar and a helm station with double seats. The cockpit area is occupied by a settee and sundeck and can be divided by retractable glass door to help keep the elements at bay. Select a smaller garage option to take advantage of the larger U-shaped sofa for guests. Wide sidedecks on both sides lead to the bow where an additional leisure area awaits.

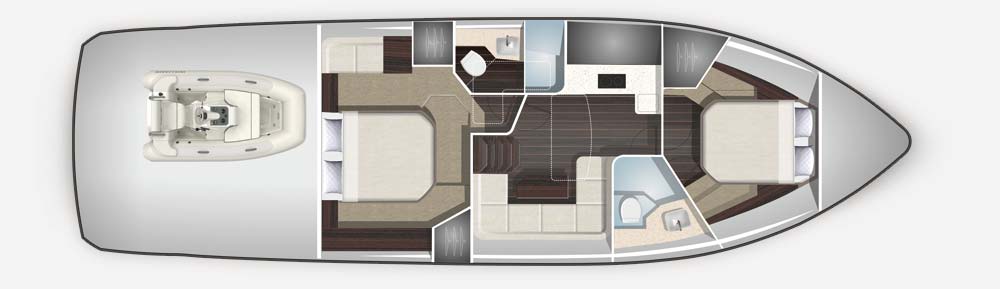

Down below an abundance of natural light penetrates the interior, with a large glass ceiling over the helm station and ample bow skylights. Comfort and convenience have not been neglected: the master cabin located midship boasts an en suite bathroom for added privacy. The guest cabin holds the bow and has direct access to the common areas: a galley, a lounge and an additional bathroom. Take advantage of the large hydraulic garage and platform to handle all personal water paraphernalia including dinghies and jet-skis.

Passengers will surely enjoy the bow leisure area with a protective bimini as well as the large sundeck in the cockpit shaded by the automatic marquee system. A wide range of engines with IPS or sterndrive propulsion systems is available along with a comprehensive list of additional equipment and several interior design lines.

PRINCIPAL DIMENSIONS

Length of the hull 13,28m / 43ft 7in
Length overall 14,98m / 49ft 2in
Beam of the hull 4,18m / 13ft 9in
Beam overall 4,25m / 13ft 11in
Draft max. (canoe body) 0,82m / 2ft 8in
Fuel tank capacity 2 x 600 dm3 / 2 x 168 US gal
Water tank capacity 450 dm3 / 119 US gal
Mass of Light Craft Condition 13600kg / 29983lbs
Maximum load 3150kg / 6945lbs
Min. engine (-s) power 2 x 221/300 kW/HP
Max. engine (-s) power 2 x 324/440 kW/HP
Crew limit 12
Category B
